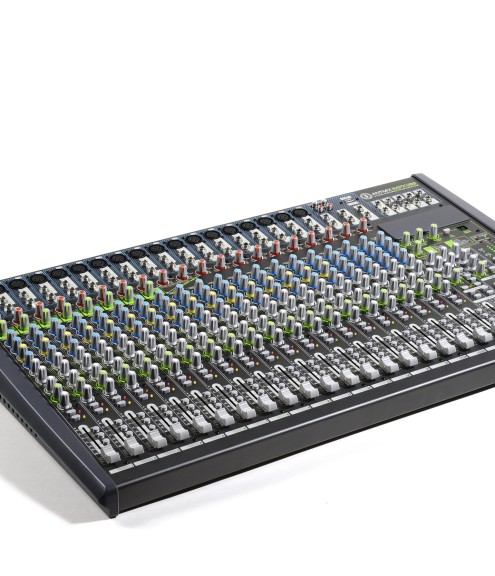

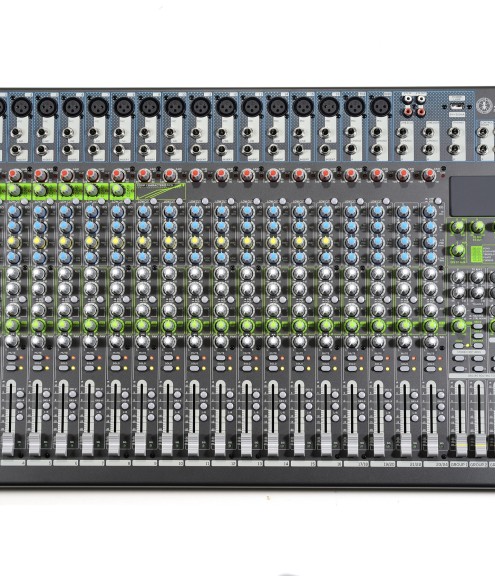

dB Technologies - ANT ANTMIX 24FX mikseta 24 kanala sa efektom i USB-om
Šifra: 11568

  • 1200,00 KM
Razglasi i studio oprema
Razglasi i studio oprema - Miksete pasivne
ANT by dB Technologies

ANTMIX 24FX USB

24 CHANNEL MIXING CONSOLE

ANTMIX 24FX allows to manage sound in many different applications, even the more complex live music set ups. The smart design of the console helps all kind of user to get the most of any audio performance. It represents a smooth solution featuring pro-details such as an advanced internal DSP with different effects and variations, the built-in compressor for main microphone inputs , 60 mm faders as well as a series of I/O to fulfill a wide range of applications.

ANT MIX 24 provides an integrated USB interface allowing direct connetion with a computer, in order to send an audio track to the consolle or record the performance on a stereo track.

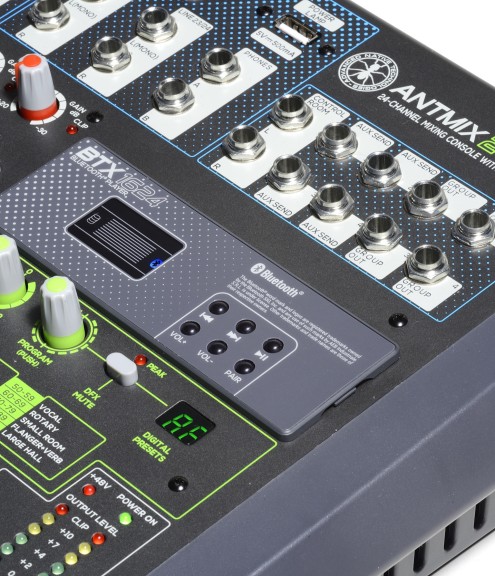

Moreover, optional cards MPX 1624 and BTX 1624 allow respectively cable or Bluetooth connection to any Mp3 reader device .

  • 24-bit  DIGITAL Effects for a more creative MIX
  • USB interface (PC/Mac)
  • Optional USB or Bluetooth cards to connect any MP3 reader device
  • MIC PREAMP for noise reduction and wider dynamic range
  • 6,35 mm Stereo Jack INSERT to connect external devices such as Compressors or EQ
  • GAIN Control
  • Low Cut Filter
  • 4 band EQ on stereo channels
  •  I/O matrix featuring 2-track IN/OUT
  • Power Lamp Input
  • Control Room
  • Group Outputs
  • Aux Sends
  • Headphones A/B OUT
  •
  • Mono microphone/line input 16, 8 with compressor
  • Stereo microphone/line input 2
  • Stereo line inputs 2
  • Power supply 100-240V AC
  • Power absorption 70W max
  • Dimensions
  • (W x H x D)
  • 735 x 460 x 85 mm
  • 29” x 18.11” x 33.46”
  • Weight 9.7Kg - 21.39 lbs
  • Microphone input
  • Connector XLR-F balanced
  • Impedance 1.8 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain 0~55dB
  • Max input +15dB (balanced)
  • Low-cut 75Hz 12dB/ott.
  • Signal-to-noise ratio <-100 dBr A weighted
  • Phantom powering +48V
  • Line input
  • Connector 6,35mm (1/4”) balanced - RCA unbalanced
  • Impedance 10 kΩ or higher
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain +15dB~-35dB
  • Signal-to-noise ratio <-100 dBr A weighted
  • Common features
  • Compressor
  • (for channel featuring compressor) Gain: 0 ---> 9 dB | Threshold: 20 dB ---> 5 dB
  • Hum & noise < -80dB A weighted, full band-width 1 channel and MAIN @ 0dB, other channels @ idle
  • Crosstalk < -80dB A weighted, full band-width 1 channel and MAIN @ 0dB, other channels @ idle
  • EQ
  • Mono & mono/stereo channels
  • +/-15 dB @12 kHz
  • +/-15 dB @ 100Hz~8kHz
  • +/-15 dB @ 80Hz
  • Stereo channels
  • +/-15 dB @ 12kHz
  • +/-15 dB @ 3kHz
  • +/-15 dB @ 500Hz
  • +/-15 dB @ 80Hz
  • 2-TRACK IN
  • Connector 2 x RCA unbalanced
  • Impedance 10 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain OFF~+15dB
  • STEREO RETURN
  • Connector 4 x 6,35mm(1/4”) balanced
  • Impedance 10 kΩ
  • Frequency response 20~20kHz +/-1dB
  • Distortion (THD + N) <0,03% @ +0dB, 22~22 kHz, A weighted
  • Gain OFF~+15dB
  • DSP
  • A/D D/A converters 24 bit
  • Number of effects 100
  • Controlli
  • Preset rotative encoder
  • DFX MUTE footswitch pedal
  • DFX MUTE switch
  • 2-digit display
  • MAIN MIX section
  • MAIN MIX outputs 2 x XLR e 2 x jack 6,35mm (1/4”) balanced
  • MAIN MIX max level +22 dBu XLR balanced (+16 dBu unbalanced)
  • MAIN MIX impedance 120 Ω
  • GR1-2 GR3-4 outputs jack 6,35mm (1/4”) balanced
  • GR1-2, GR3-4 max levels +22 dBu 6,35mm (1/4”) balanced (+16 dBu unbalanced)
  • GR1-2 GR3-4 impedance 120 Ω
  • Prese Headphones 1-2 2 x jack 6,35mm (1/4”) stereo unbalanced
  • Headphones impedances 30Ω
  • Control room outputs 2 x jack 6,35mm (1/4”) balanced
  • Control room ipmedance 120 Ω
  • 2-TRACK OUT outputs 2 x RCA unbalanced
  • 2-TRACK impedance 1 kΩ

ANTMIX 24FX USB

ANTMIX 24FX USB
ANTMIX 24FX USB
ANTMIX 24FX USB
ANTMIX 24FX USB
